This is the second in a series of articles about annotating downloaded maps in Access

The first part of this article demonstrated several of the different ways that online maps can be modified by adding additional layers.

Maps can be obtained from various online sources including Google, Bing, Open Street Maps & Michelin. This article focuses on using Google Maps

The generated map can be displayed using a web browser control (standard or ActiveX) or as a downloaded image.



1.   Create a Map                                                                                                                               Return To Top

To create a map centred on a specified location, the location can be based on any of the following:
•   Zip code / Postcode e.g. SE1 7PB
•   Co-ordinates e.g. 51.5027667,-0.1215859 (lat/long)
•   Full/partial address e.g. London Eye ; 6 Hill Street, Clevedon, Somerset

You must also specify:
•   Map size in pixels e.g. 640x400 ; 480x320
•   Zoom value in the range 1-20 where 1 = whole Earth and 20 = rooftop level
•   Map type (roadmap/terrain/satellite/hybrid)
•   Your Google Maps API key (or equivalent for other online maps such as Bing)

This information is combined to create the Google Static Maps URL needed to generate the map:

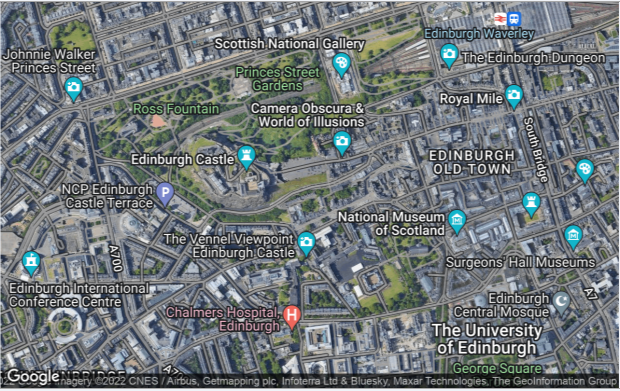

For example, this URL (153 characters including the API key) creates the map shown below:
https://maps.googleapis.com/maps/api/staticmap?center=55.94801,-3.197093&zoom=15&size=800x400&maptype=hybrid&key=YourGoogleAPIKey




2.   Adding Map Layers                                                                                                                    Return To Top

Once you have generated standard Google static maps, the next step is to personalise the map for clients

To do this, one or more additional items (map layers) can optionally be added including the use of:
•   Marker points e.g. to mark client locations or nearby places
•   Lines joining 2 or more points e.g. to indicate routes between locations
•   Circles around a location e.g. to show places of a specified type within a specified distance
•   Boundary shapes e.g. to show postcode or regional boundaries
•   Feature styles e.g. show local & main roads in selected colours or other points of interest
•   Scale (1 or 2) - only affects the photographs used in maps - for satellite / hybrid maps only.
    Using scale = 2 allows you to zoom in on a map area (using a browser control) or improve the map quality (downloaded image)

All annotations are added as additional map layers using code as part of the URL used to generate the map.
Several layers can be combined to include additional information.

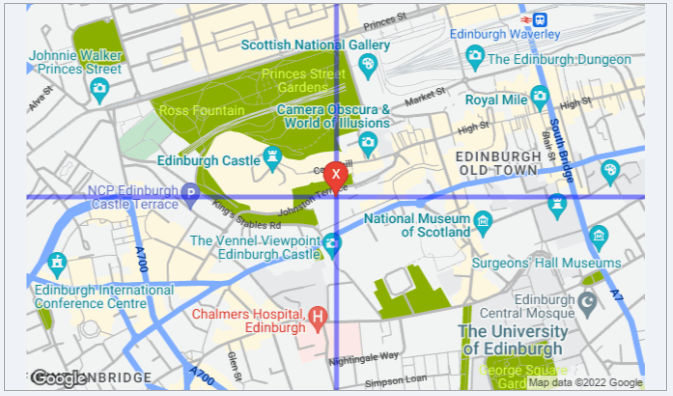

For example, the next image shows the same location as a roadmap with these map layers added:
•   red marker labelled X centred on the specified postcode
•   horizontal & vertical blue lines intersecting at the same location
•   main roads marked in blue and minor roads in grey
•   parks labelled & shaded in green


The URL required to create this map is of course significantly longer (656 characters including the API key):
https://maps.googleapis.com/maps/api/staticmap?center=55.94801,-3.197093&zoom=15&size=800x400&maptype=roadmap
&markers=color:red|size:normal|label:X|55.94801,-3.197093
&path=color:blue|weight:5|50.94801,-3.197093|55.94801,-3.197093|60.94801,-3.197093
&path=color:blue|weight:5|55.94801,-13.19709|55.94801,-3.197093|55.94801,6.802907
&style=feature:road|color:blue|visibility:simplified
&style=feature:road.local|color:gray
&style=feature:road|element:labels.text.fill|invert_lightness:false
&style=feature:poi.park|color:green|visibility:simplified
&style=feature:poi.park|element:labels.text.fill|invert_lightness:false&key=YourGoogleAPIKey

Each additional feature added to the map increases the URL length.
Eventually you will hit the 2083-character URL limit using the current web browser control which is still based on the antiquated Internet Explorer 7 browser.

NOTE:
a)   The limit is 2048 characters for the standard web browser control or 2083 using the ActiveX web browser

b)   It is possible to overcome some issues with the old web browser control by using browser emulation either as IE11 or Edge mode.
      This requires editing the registry. However, this is both simple and safe to do.
      For full details, see my article: Fix Google maps display issues in Access web browser control

c)   A new web browser control based on the Chromium Edge browser is currently under development and this is likely to have a much larger URL character limit.
      It will also overcome issues with the Google Javascript API which can no longer be used with the old browser control.
      Hopefully, the new Edge browser control should be released by March 2023.

d)   However, the maximum URL length will still be limited by the maximum length determined by Google.
      From widespread testing, this currently appears to be 16,384 (16K) characters i.e. about 8 times larger than using an IE based web browser control

      Using a downloaded static map image bypasses the restrictions of the IE web browser control but the URL length still subject to the limits set by Google.



3.   Managing the URL Character Limit                                                                                          Return To Top

Adding certain features such as complex boundary lines would in some cases cause the character limit to be surpassed many times over.
However, there are ways of overcoming these issues.

There are two main processes used to manage the total number of characters in the URL:

a)   Encoding the co-ordinates
b)   Sampling the data



4.   Encoding the co-ordinates                                                                                                        Return To Top

      Encoding uses complex algorithms to significantly shorten URLs without losing accuracy

      In several of my mapping applications such as the UK Postal Address Finder app, encoded data is used to add shapes such as circles and octagons to the maps.
      It is also extensively used to show boundary lines e.g. postcode areas or county bouundaries

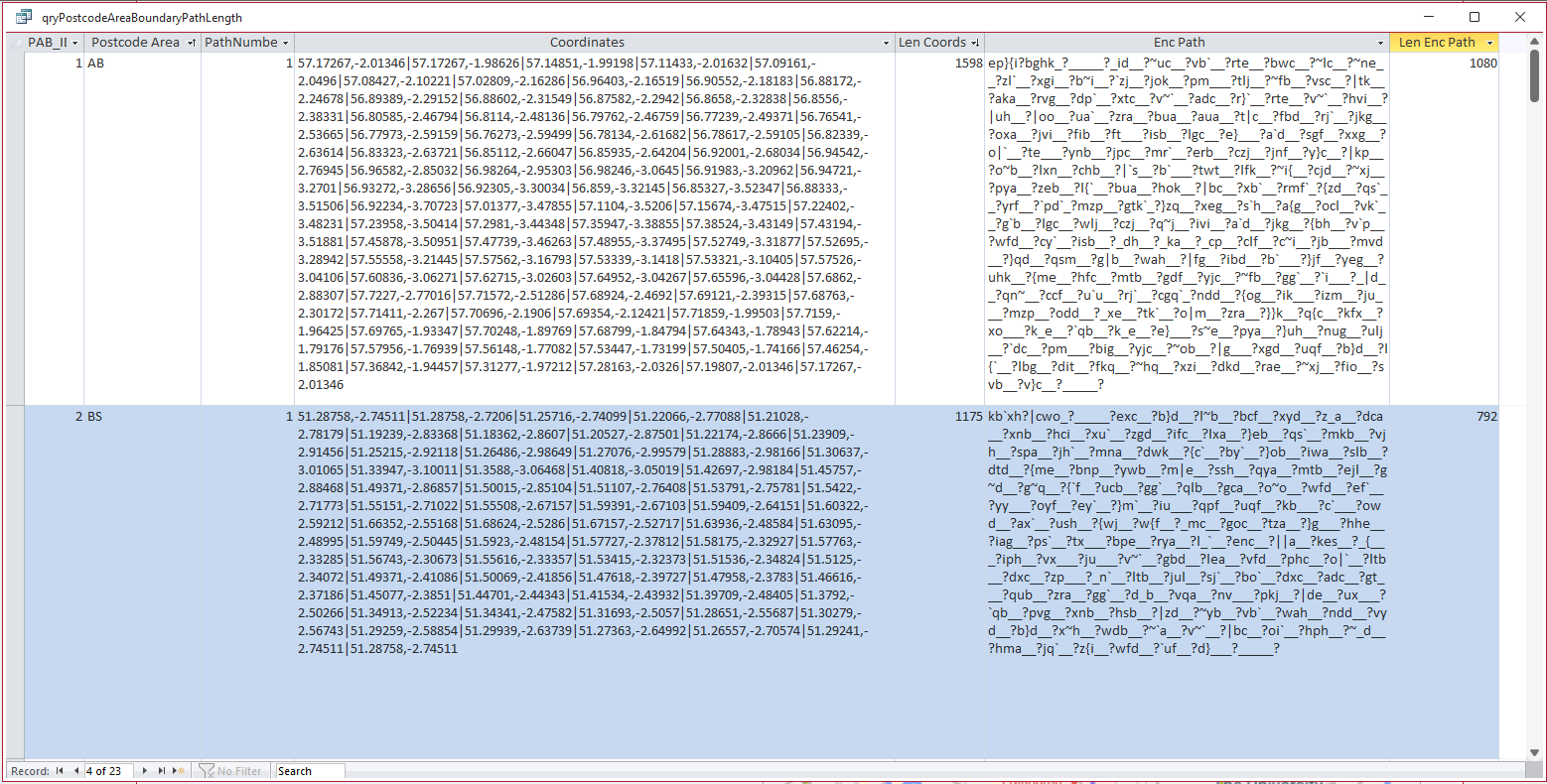

      For example, the boundary coordinates for two postcode areas are shown below together with the encoded versions of the same data


      Encoding ALL the boundary co-ordinate data has reduced the total characters used in the URL by about one third e.g. from 1558 to 1080 characters

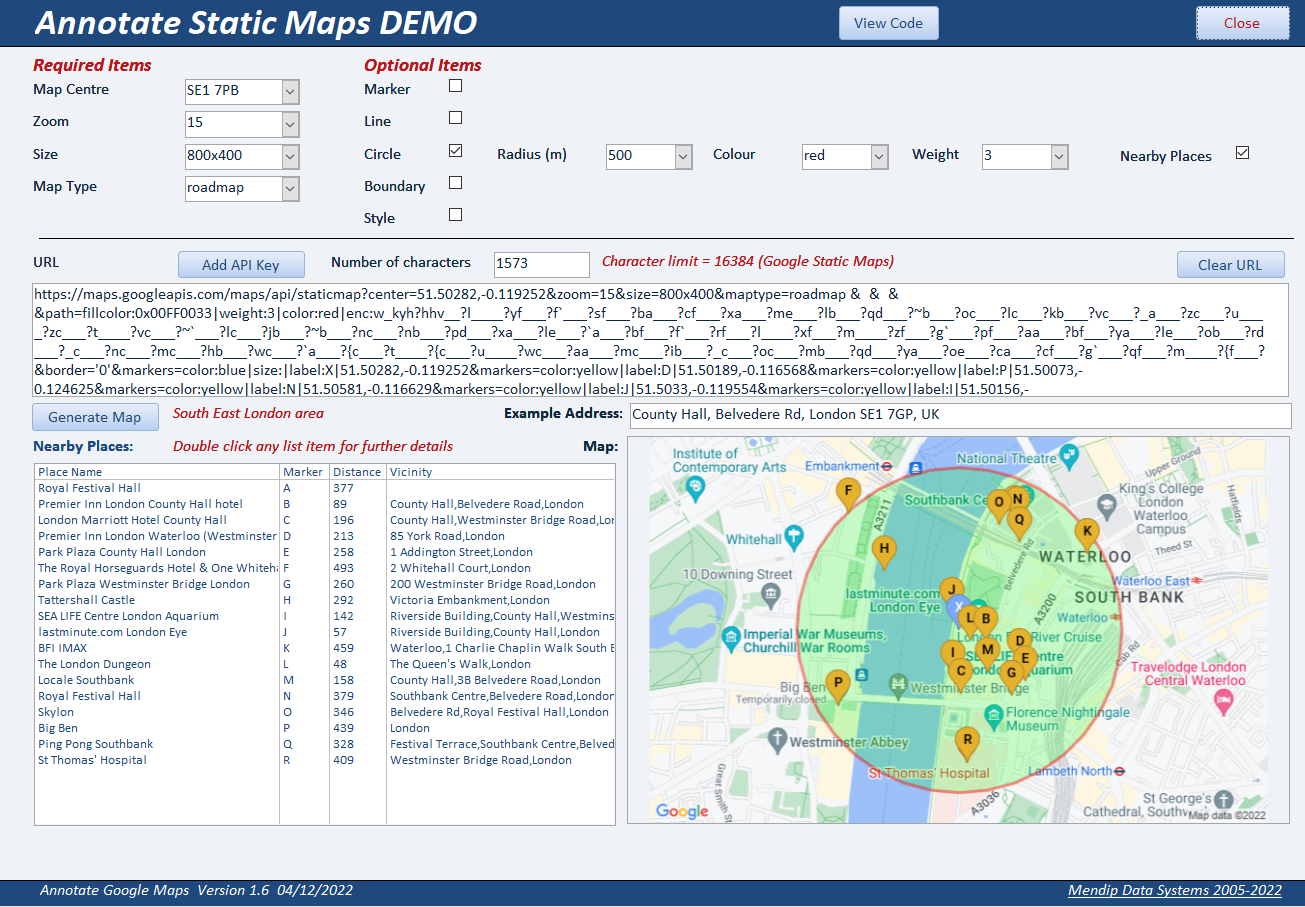

      Encoding is also used to draw circles around a specified location.
      For example, when showing nearby places of interest within a set radius.



      NOTE:
      The 'circle' is actually made up of 36 straight lines drawn by joining 36 points at 10 degree intervals all of which are equidistant from the central location
      However, it looks like a perfect circle to the end user!



5.   Sampling the data                                                                                                                    Return To Top

      Sampling boundary path data is necessary where the total character length is much longer such that the URL limit would be exceeded.
      With an appropriate level of sampling, the boundary can then be displayed because fewer data points are being used.

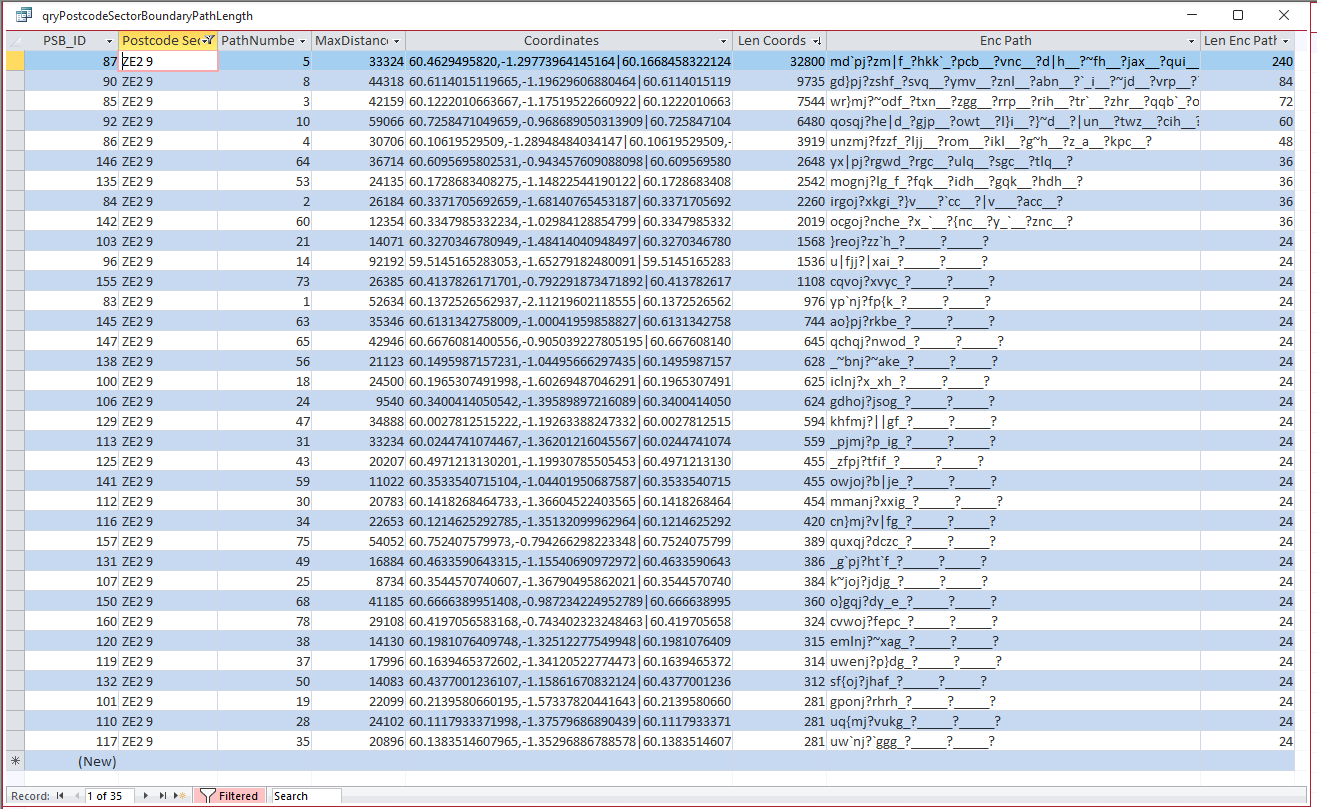

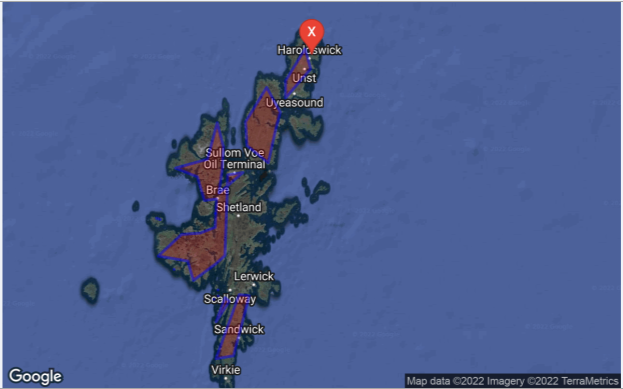

      For example, the data below is for all the boundary paths for the postcode sector ZE2 9. This comprises 35 separate parts on several small islands

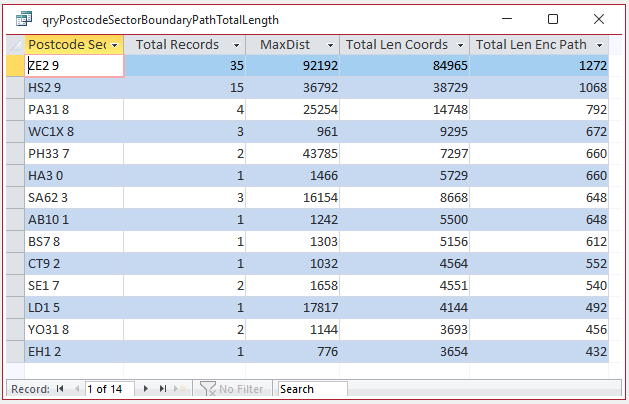

      Combining all boundary path data, the total path length for postcode sector ZE2 9 after encoding & sampling has been reduced from 84965 to 1272 characters


      The inevitable trade-off of sampling data is a reduction in accuracy.


      The amount of sampling done depends on the total path length, so reduced accuracy may not be noticeable in all cases.

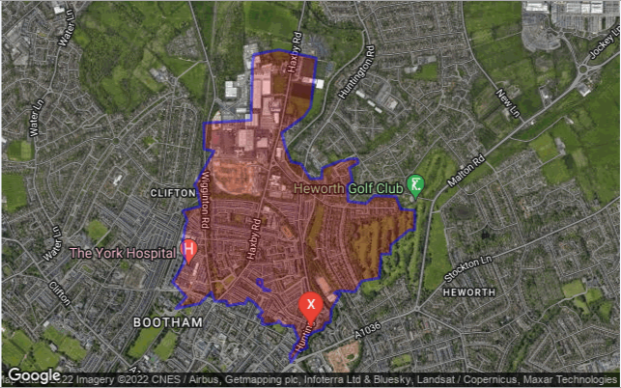

      For example, the boundary path for postcode sector YO31 8 is well defined


      Both the encoding and sampling processes are described in detail (with all required code) in my article: Encoded Map Path Co-ordinates

      These processes all use additional trigonometric functions not built into Access. For full details (and code), see my article: Missing Trigonometric Functions



6.   Related items / example apps                                                                                               Return To Top

The following apps use various geolocation features to generate maps. All are available elsewhere on this website:

a)   Get Geolocation from Photos   (FREE)

b)   Get Current Geolocation   (FREE)

c)   UK Postcode Address Lookup   (FREE)

d)   UK Postal Address Finder   (PAID)



7.   Related articles / code                                                                                                           Return To Top

a)   Encoded Map Path Co-ordinates

b)   Missing Trigonometric Functions



8.   Useful links                                                                                                                               Return To Top

The following links will also help you get started on creating your own maps in Access:

a)   Google Static Maps API Developers Guides
      https://developers.google.com/maps/documentation/maps-static/start
      https://developers.google.com/maps/documentation/maps-static/styling

b)   Google Nearby Places API Developers Guide
      https://developers.google.com/maps/documentation/places/web-service/search-nearby

c)   IE browser URL character limit
      Maximum URL length is 2,083 characters in Internet Explorer (microsoft.com)
      What is the maximum length of a URL in different browsers? - Stack Overflow
      How long of a URL can Internet Explorer 9 take? - Stack Overflow

d)   Fix Google maps display issues in Access web browser control
      https://www.isladogs.co.uk/google-maps-fix/



9.   Summary                                                                                                                                   Return To Top

The above article was the second in a series of articles for this website and was used to explain some of the processes involved in creating complex maps including encoding and sampling data

The third article in this series will be used to put all of this information together including showing how the URLs can be built up in code.
An example app will also be supplied with the next article
