Version 1.4 Approx 0.8 MB (zipped) First Published 23 Oct 2023 Last Updated 24 Oct 2023
My recent article Extend Access across Multiple Monitors provided code that allows the Access application interface to be extended across two or more monitors.
As previously stated, there are several reasons why extending the Access interface across monitors can be useful. For example:
a) Display several objects such as forms/reports simultaneously without overlaps.
b) Display a complete datasheet form which is too wide to fit on a single screen across 2 or more monitors horizontally.
c) Display a complete datasheet form which is too tall to fit on a single screen across 2 or more monitors vertically.
d) Simulate how your application will look for users with very large, high resolution monitors.
e) Test the effects of using automatic form resizing with your applications for users with very large, high resolution monitors.
f) Plan for Access forms wider than the current limit of 22.75 inches (57.79 cm). Microsoft have announced wider forms will be supported in a forthcoming release.
g) Display a very large number of items across multiple monitors on the Quick Access Toolbar (QAT).
Normally, users would position each object manually according to need. However at times it may be useful to automate this.
In this article, I will demonstrate how objects such as forms or reports can be automatically positioned on different monitors in an Access application interface which is extended across two or more monitors.
However, achieving this result successfully using code, no matter what arrangement is used for the monitor display, proved trickier than expected
The form used in this example app is similar to that in the original app but with additional functionality.

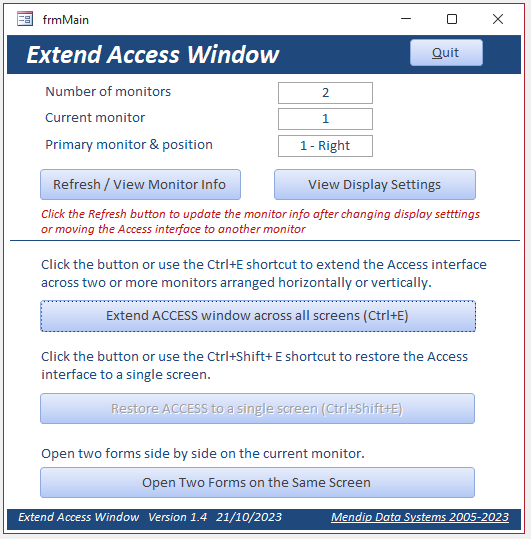

A summary of the current monitor arrangement is shown at the top of the form

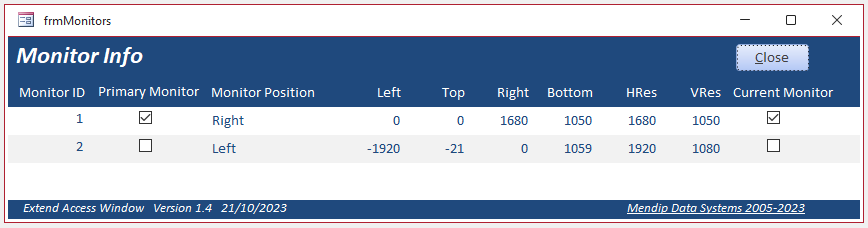

Click the Refresh/View Monitor Info button to update the monitor info and display in a form:

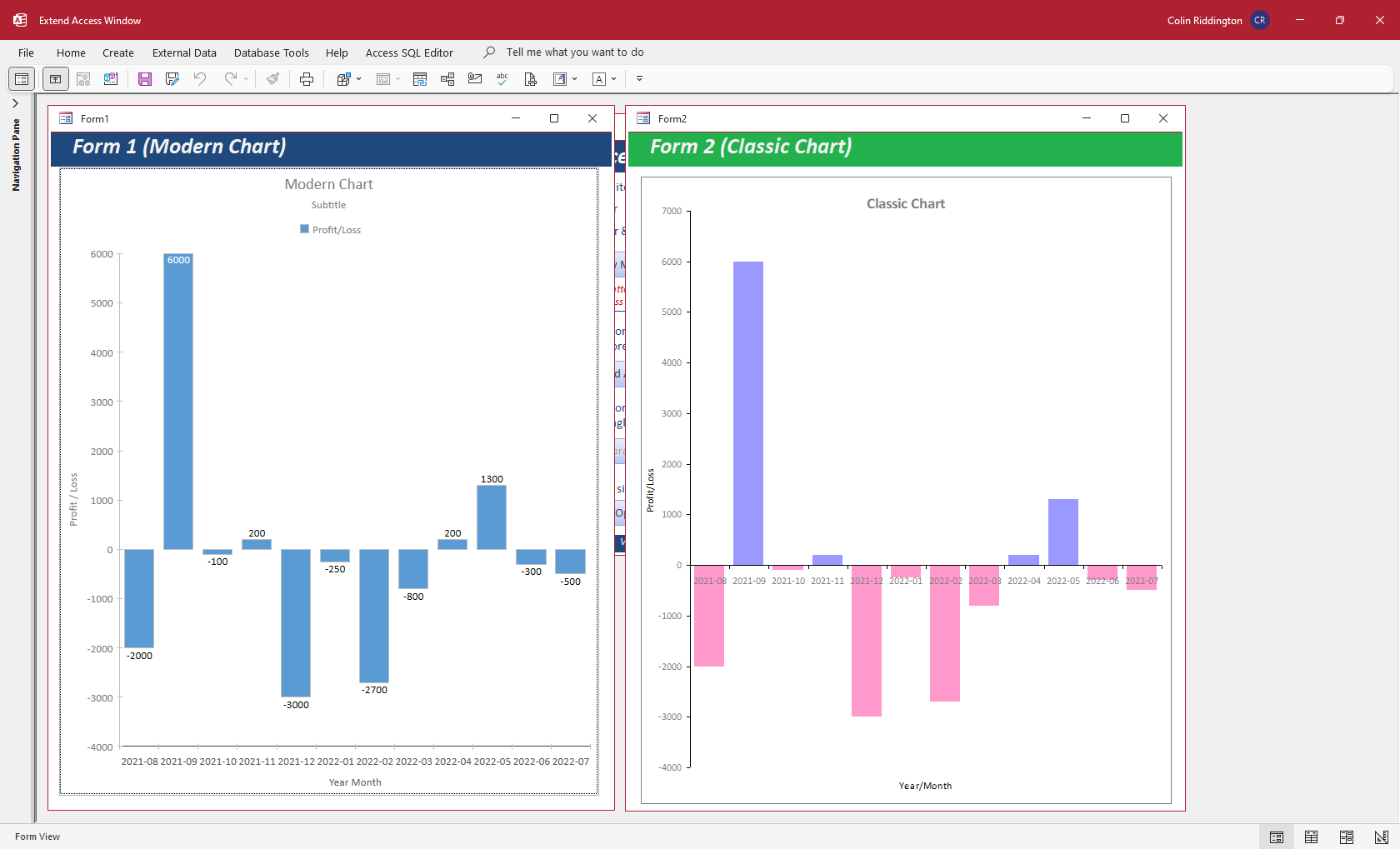

Click the Open Two Forms button to view 2 forms showing the same data as a modern chart or classic chart side by side on the same screen
Now click the Extend ACCESS window button (or use the keyboard shortcut Ctrl + E) and then open the two forms again with the following result:
a) Form 1 (Modern chart) opens near the top left of Monitor 1
b) Form 2 (Classic chart) opens near the top left of Monitor 2

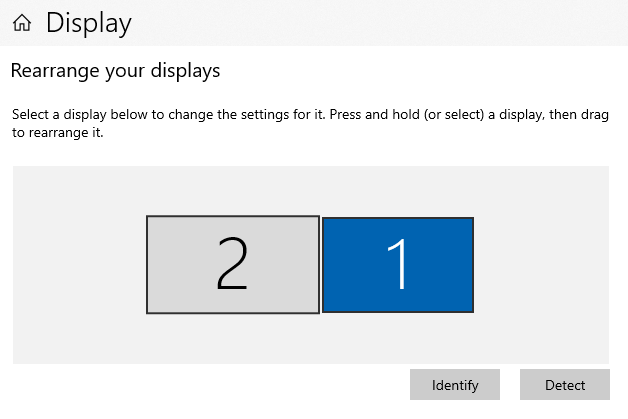

For example, here the 2 forms are arranged horizontally with Form1 (primary) on the right as shown below

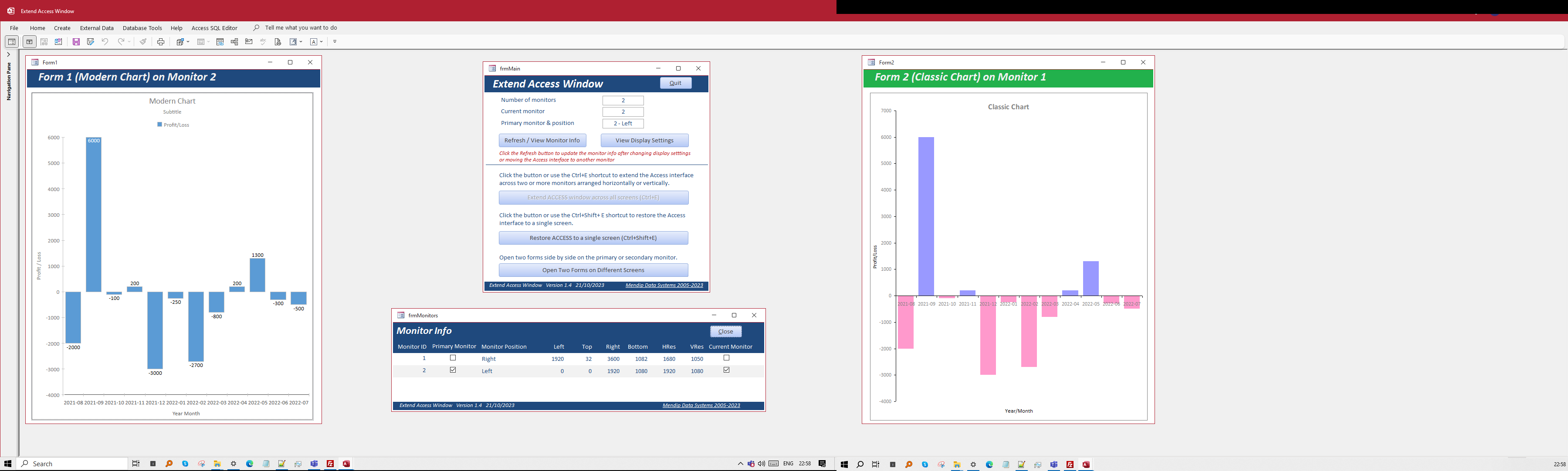

In this case, the layout on the two screens will be like this:
Click the image to open a larger version on a new tab
This should happen no matter which is the primary monitor, nor how the two monitors are arranged

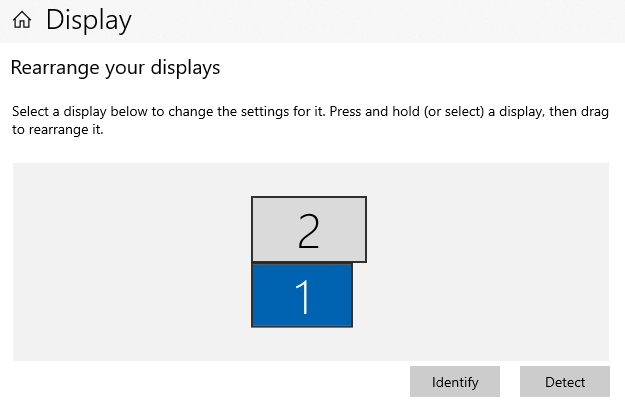

You can test this by clicking View Display Settings then rearranging the monitor positions and/or resetting the primary monitor

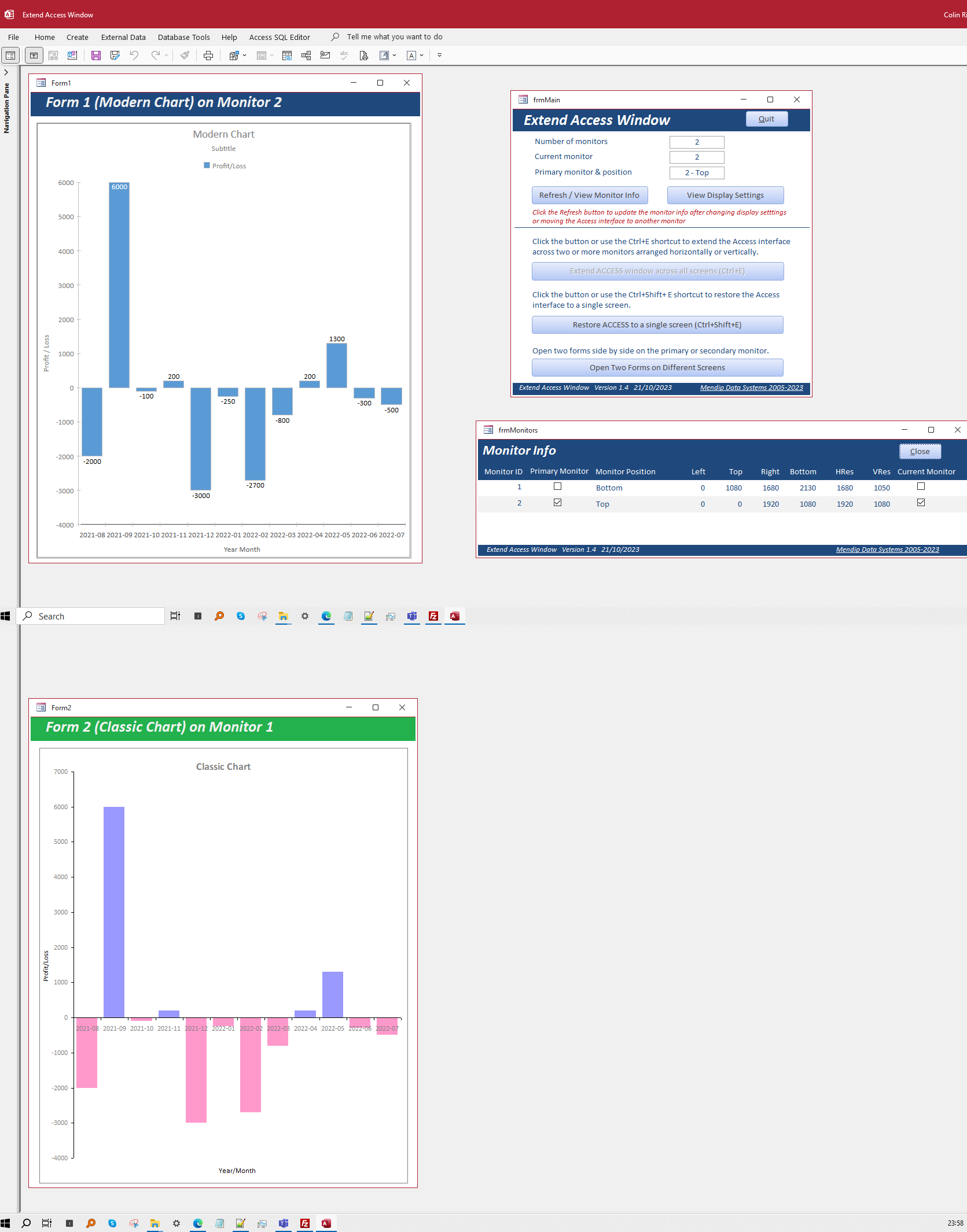

In this arrangement, the screen layout will be:
If you have more than two monitors, the code uses the primary monitor and the first secondary monitor for placing the two forms.
Code (Main Form):
Private Sub cmdExtend_Click()
If CurrentProject.AllForms("frmMonitors").IsLoaded Then DoCmd.Close acForm, "frmMonitors"
'recheck the monitor arrangement and update tblMonitorInfo
CheckMonitorInfo
'close Form1/Form2 if currently open
If CurrentProject.AllForms("Form1").IsLoaded Then DoCmd.Close acForm, "Form1"
If CurrentProject.AllForms("Form2").IsLoaded Then DoCmd.Close acForm, "Form2"
'extend Access interface across all screens
ExtendAccessScreens
blnExtend = True
cmdExtend.Enabled = False
cmdRestore.Enabled = True
Me.lblOpen.Caption = "Open two forms side by side on the primary or secondary monitor."
cmdOpen.Caption = "Open Two Forms on Different Screens"
End Sub
'=======================================
Private Sub cmdOpen_Click()
'example of 2 forms opened in different arrangements on multiple screens depending on the setup
'If the Access interface covers multiple monitors:
'Form1 always opens near the top left of monitor 1
'Form2 always opens near the top left of monitor 2
'Where the interface is limited to a single monitor, the two forms open alongside each other
MinimizeNavigationPane
DoCmd.OpenForm "Form2"
DoCmd.OpenForm "Form1"
End Sub
'=======================================
Private Sub cmdRestore_Click()
'recheck the monitor arrangement and update tblMonitorInfo
CheckMonitorInfo
'close Form1/Form2 if currently open
If CurrentProject.AllForms("Form1").IsLoaded Then DoCmd.Close acForm, "Form1"
If CurrentProject.AllForms("Form2").IsLoaded Then DoCmd.Close acForm, "Form2"
'restores Access interface to fill one monitor only
RestoreSingleScreen
blnExtend = False
cmdRestore.Enabled = False
cmdExtend.Enabled = True
Me.lblOpen.Caption = "Open two forms side by side on the current monitor."
cmdOpen.Caption = "Open Two Forms on the Same Screen"
End Sub
Code (Form1):
Private Sub Form_Load()
'P2T = 15 (pixels to twips conversion)
DoCmd.Restore
Dim lngLeft As Long, lngTop As Long
lngTop = 200
If CountMonitors > 1 And blnExtend Then
Me.lblHeader.Caption = "Form 1 (Modern Chart) on Monitor " & GetPrimaryMonitorID()
'place near top left of primary monitor
Select Case GetPrimaryMonitorPosition
Case "Left"
lngLeft = P2T * GetPrimaryMonitorLeft + 200
Case "Right"
lngLeft = P2T * GetSecondaryMonitorWidth + 200
Case "Top"
lngLeft = P2T * GetPrimaryMonitorLeft + 200
Case "Bottom"
lngLeft = P2T * GetPrimaryMonitorLeft + 200
lngTop = P2T * GetSecondaryMonitorHeight + 200
Case "Center"
lngLeft = P2T * GetPrimaryMonitorLeft + 200
End Select
Else
Me.lblHeader.Caption = "Form 1 (Modern Chart)"
'displayed on 1 monitor near top left
lngLeft = 200
End If
DoCmd.MoveSize lngLeft, lngTop, , Me.WindowHeight - 200
End Sub
Code (Form2):
Private Sub Form_Load()
'P2T = 15 (pixels to twips conversion)
DoCmd.Restore
Dim lngLeft As Long, lngTop As Long
If CountMonitors > 1 And blnExtend Then
Me.lblHeader.Caption = "Form 2 (Classic Chart) on Monitor " & GetFirstSecondaryMonitorID()
'place near top left of secondary monitor
Select Case GetPrimaryMonitorPosition
Case "Left"
lngLeft = P2T * GetPrimaryMonitorWidth + 200
lngTop = 200
Case "Right"
lngLeft = P2T * GetPrimaryMonitorLeft + 200
lngTop = 200
Case "Top"
lngLeft = 200
lngTop = P2T * GetPrimaryMonitorHeight + 200
Case "Bottom"
lngLeft = 200
lngTop = 200
Case "Center"
lngLeft = P2T * GetPrimaryMonitorLeft + 200
lngTop = 200
End Select
Else
Me.lblHeader.Caption = "Form 2 (Classic Chart)"
'displayed on 1 monitor to right of Form1
lngLeft = Me.Width + 500
lngTop = 200
End If
DoCmd.MoveSize lngLeft, lngTop, Me.Width, Me.WindowHeight - 200
End Sub
Issues
As mentioned above, I originally had some issues in getting code to work reliably in all monitor display layouts.
I am mentioning some of the issues here in case you experience similar problems.
1. Aligning monitors
For best results, monitors should be similar sizes and resolutions. They should also be top aligned (in a vertical arrangement) or left aligned in a vertical layout.

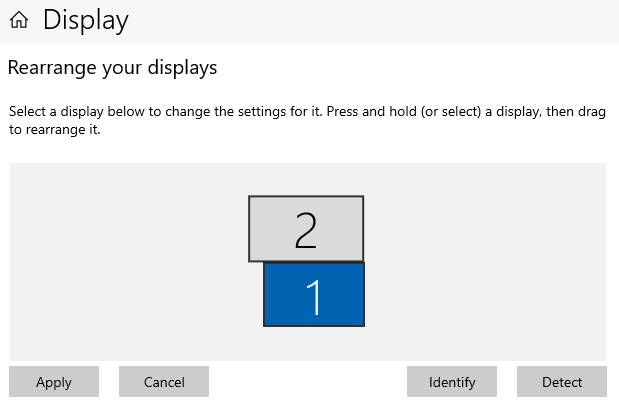

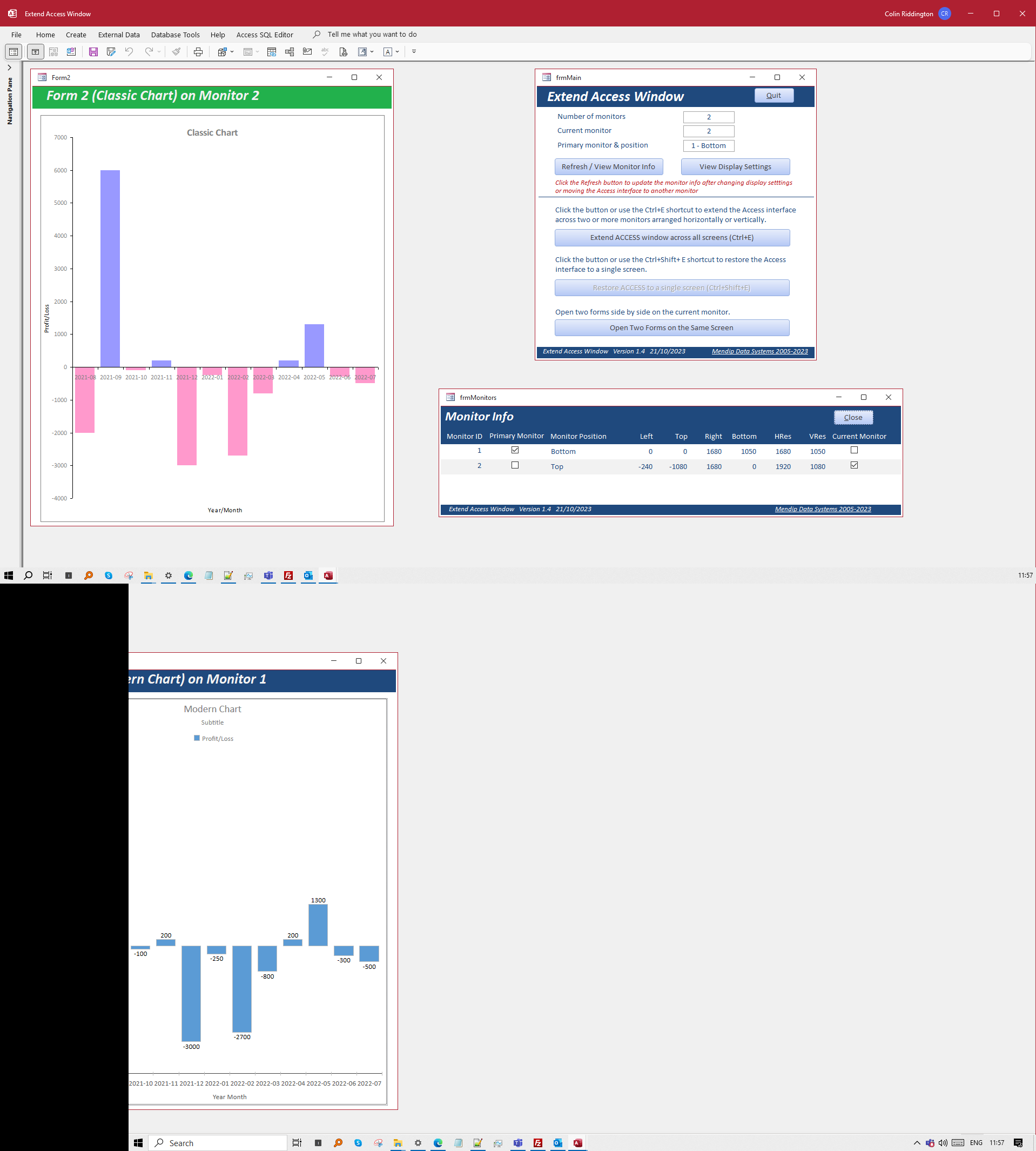

Other arrangements may cause part of a form to be off screen. For example, if the monitors are right aligned in a vertical layout:
Of course, the form can be shifted horizontally so it is completely shown on screen.
2. Positioning forms
My original plan was to center the forms on each monitor.
However doing so triggered error 2498 as the integer limit (32767) was exceeded for the left value in the DoCmd.MoveSize code line.
I expect this issue will be fixed soon as the Access team have announced that support for large monitors will be added in the relatively near future.
3. Reports

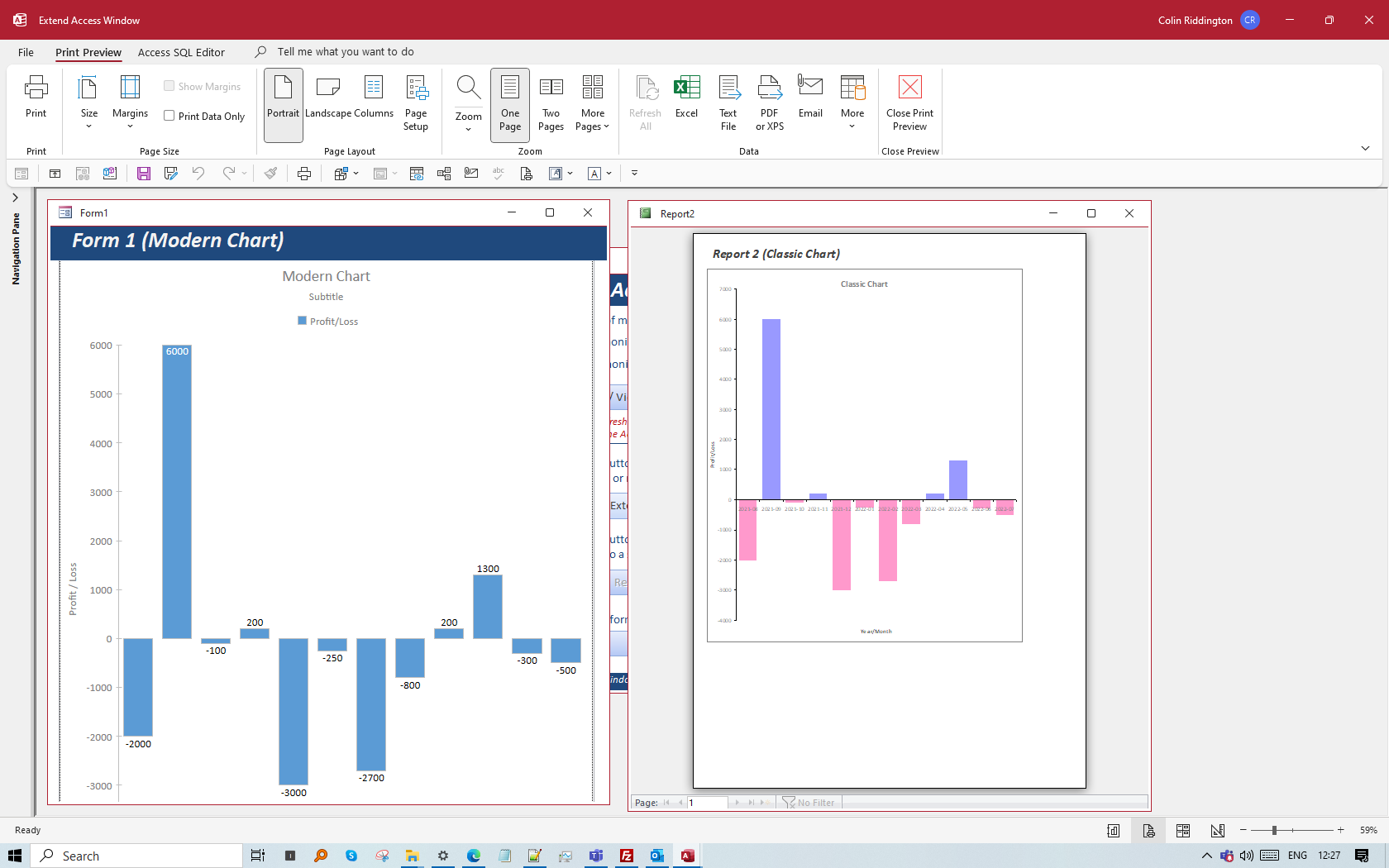

If a report is opened in print preview alongside a form, the print preview ribbon could be confusing to end users.
Report view is probably more suitable for this purpose.
Download
Click to download: Extend Access Window v1.4 Approx 1.2 MB (zipped)
Feedback
Please use the contact form below to let me know whether you found this article interesting/useful or if you have any questions/comments.
Please also consider making a donation towards the costs of maintaining this website. Thank you
Colin Riddington Mendip Data Systems Last Updated 24 Oct 2023
|
